A reliable freeze spray is indispensable for electronic diagnostics, whether for tracking down intermittent faults, diagnosing thermal-related failures, or simply cooling components during testing. The choice of propellant plays a critical role in performance, safety, and environmental impact. This article delves deep into the technical aspects of freeze sprays, comparing the most commonly used propellants: HFC-134a and HFO-1234ze.
We’ll explore their characteristics, use cases, benefits, and drawbacks, all through the lens of hands-on engineering practice. In particular, we’ll highlight MG Chemicals’ freeze spray product line, which includes:
- 403A – Super Cold 134 Freeze Spray (100% HFC-134a)
- 403C – Super Cold 1234ZE Freeze Spray (100% HFO-1234ze)
These two products represent the forefront of freeze spray technology and serve as excellent case studies in selecting the right solution for electronic diagnostics.
What Is Freeze Spray?
Freeze spray, also known as circuit chiller or component cooler, is a canned refrigerant used to cool electronic components quickly. It is applied by spraying the refrigerant directly onto the component or area of interest, which causes a rapid temperature drop due to the evaporation of the propellant.
Common Applications
- Thermal diagnostics: Identifying heat-sensitive faults or components.
- Intermittent fault detection: Cooling components to reproduce failures.
- Component testing: Simulating low-temperature environments.
- Mechanical shrink fitting: Temporarily shrinking metal parts for assembly.
- Removing chewing gum or adhesives: Rapid freezing makes substances brittle for easier removal.
In electronics, freeze sprays are primarily valued for fault localization and environmental simulation. They allow engineers to induce or resolve thermal issues on demand.
Key Requirements for Circuit Chillers
Not all cooling sprays are suitable for sensitive electronics. The most critical requirements include:
- Non-flammability: Safety is paramount, especially near energized circuits. That is why HFC-134a and HFO-1234ze are the propellants of choice.
- Non-conductivity: Preventing short circuits during application.
- Zero residue: Avoiding contamination or corrosion of sensitive parts.
- Moisture-free: Preventing condensation and water damage.
MG Chemicals’ 403A and 403C sprays meet all of these standards, making them ideal choices for electronics.
Freeze Spray Propellants
The effectiveness, safety, and environmental impact of freeze sprays are all influenced by the choice of propellant. The two most prominent propellants in today’s market are:
- HFC-134a (1,1,1,2-Tetrafluoroethane)
- HFO-1234ze (trans-1,3,3,3-Tetrafluoropropene)
Let’s compare these two in detail…
HFC-134a: Nonflammable Freeze Spray
HFC-134a is a hydrofluorocarbon refrigerant long used in automotive air conditioning, commercial refrigeration, and freeze sprays. It replaced ozone-depleting substances like CFCs and HCFCs and has proven effective and safe for electronics.
Advantages
- Excellent cooling power: Can reduce temperatures rapidly to -50 °C.
- Stable and inert: Chemically stable and non-reactive with electronic components.
- 100% nonflammable: Ensures user safety.
- Non-conductive and residue-free: Leaves no moisture or conductive materials behind.
Environmental Concerns
The primary drawback of HFC-134a is its high global warming potential (GWP). With a GWP of approximately 1,300, it is a regulated substance in many jurisdictions. While it poses minimal direct health risk under normal use, its environmental footprint is significant.
Despite its environmental impact, HFC-134a remains in use because of its high performance and safety profile. However, regulatory pressure is pushing manufacturers toward more eco-friendly alternatives.

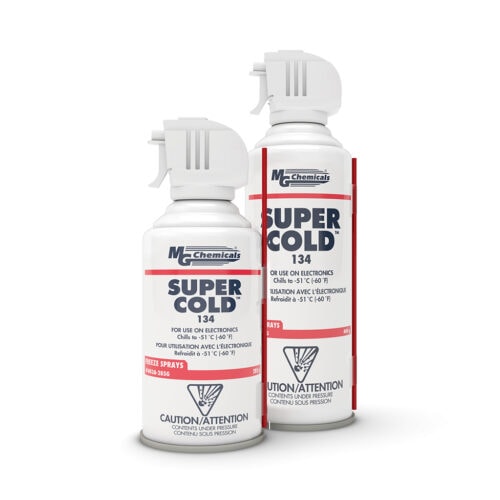

MG Chemicals Product: 403A – Super Cold 134 Freeze Spray
This product contains 100% HFC-134a. It is completely non-flammable, making it suitable for use on live electronics. The 403A is designed for professional use in diagnostics, particularly where consistent, deep cooling is required.
MG Chemicals Product: 403A – Super Cold 134 Freeze Spray
This product contains 100% HFC-134a. It is completely non-flammable, making it suitable for use on live electronics. The 403A is designed for professional use in diagnostics, particularly where consistent, deep cooling is required.
HFO-1234ze: Next Generation Freeze Spray
HFO-1234ze belongs to the hydrofluoroolefin family and represents a new generation of refrigerants with ultra-low GWP. It is gaining rapid adoption in various industries due to its environmental benefits.
Advantages
- Ultra-low GWP: Less than 1 – nearly equivalent to CO2.
- Non-flammable: Safe for use in virtually all settings, including cleanrooms and near high-voltage equipment.
- Non-conductive and zero residue: Like HFC-134a, it is safe for sensitive electronics.
- Cooling performance to -50 °C: Matches HFC-134a in end-point cooling capacity.
Trade-offs
- Slightly slower cooling rate: The thermal transfer efficiency is slightly lower than HFC-134a.
- Higher cost: As a newer chemical, it can be more expensive.
MG Chemicals Product: 403C – Super Cold 1234ZE Freeze Spray
The 403C uses 100% HFO-1234ze and is positioned as MG Chemicals’ most advanced freeze spray. It provides excellent cooling performance with a minimal environmental footprint. Ideal for labs or facilities seeking to meet sustainability goals without compromising on safety or effectiveness.
Choosing the Right Circuit Chiller for Your Application
When selecting a freeze spray, engineers must consider the trade-offs between performance, safety, and sustainability. Here are some general guidelines:
- For maximum performance and cost-efficiency: Use 403A (HFC-134a). Ideal for most diagnostics where GWP is not a primary concern.
- For sustainability-focused applications: Choose 403C (HFO-1234ze). Excellent for green labs and organizations with environmental mandates.
Dangers of Mixing Freeze Spray Propellants
Some manufacturers attempt to reduce costs by blending HFC-134a with HFC-152a. While this may lower prices, it significantly compromises safety:
- HFC-152a is flammable: Increases the risk of ignition near live circuits.
- Unknown blend ratios: Makes performance and safety inconsistent.
Using 100% nonflammable propellants, as MG Chemicals does, eliminates these risks and ensures a higher standard of workplace safety.
Freeze Spray Selection Guide: HFC-134a vs HFO-1234ze
| Feature | 402A (HFC-134a) | 402B (HFC-152a) | 402C (HFO-1234ze) | 402E (Electronic Duster) |
|---|---|---|---|---|
| Propellant Type | HFC-134a | HFC-152a | HFO-1234ze | None |
| Flammability | Nonflammable | Flammable | Nonflammable | Nonflammable |
| GWP (Global Warming Potential) | ~1430 | ~124 | <1 | 0 |
| Residue-Free | Yes | Yes | Yes | Yes |
| Use on Live Electronics | Yes | No | Yes | Yes |
| Chill Effect During Use | Yes | Yes | Moderate | No |
| Reusability | No | No | No | Yes |
| Upfront Cost | Low | Low | Medium | High |
| Long-Term Cost Efficiency | Moderate | Moderate | Moderate | High |
| Environmental Friendliness | Low | Moderate | High | Very High |
Real-World Circuit Chiller Use Cases
Case 1: Diagnosing Intermittent GPU Failures
In a high-end workstation, a GPU intermittently fails under load. Applying freeze spray to various capacitors and voltage regulator modules reveal a faulty voltage regulator that fails at operating temperature. Both 403A and 403C perform well, but 403A achieves the temperature drop fractionally faster, aiding quicker identification.
Case 2: Environmental Testing of Automotive Modules
An automotive electronics supplier simulates cold-weather startups. The sustainability department mandates low-GWP products. The team uses MG Chemicals’ 403C to simulate -50 °C cold soak while satisfying internal green initiatives.
Case 3: R&D Lab with Strict Fire Safety Protocols
In a semiconductor lab, flammable materials are strictly prohibited. The team chooses 403A to ensure absolute non-flammability without compromising cooling performance during prototype testing.
Engineering Confidence with MG Chemicals
With 70 years of experience, MG Chemicals is a trusted name in the electronics industry, specializing in high-quality chemical products. MG Chemicals products are distributed worldwide, ensuring easy access for customers across North America, Europe, Asia, and beyond.
MG Chemicals has a dedicated technical and customer service teams offer personalized assistance and expert guidance to ensure successful outcomes. Continuous investment in research and development drives the creation of advanced, reliable solutions tailored to industry needs.
In the field of electronic diagnostics and repair, freeze sprays are more than just convenience items – they’re diagnostic instruments. Choosing the right one means balancing safety, performance, and environmental responsibility.
Contact us today or visit our Freeze Spray product category page to learn more!
